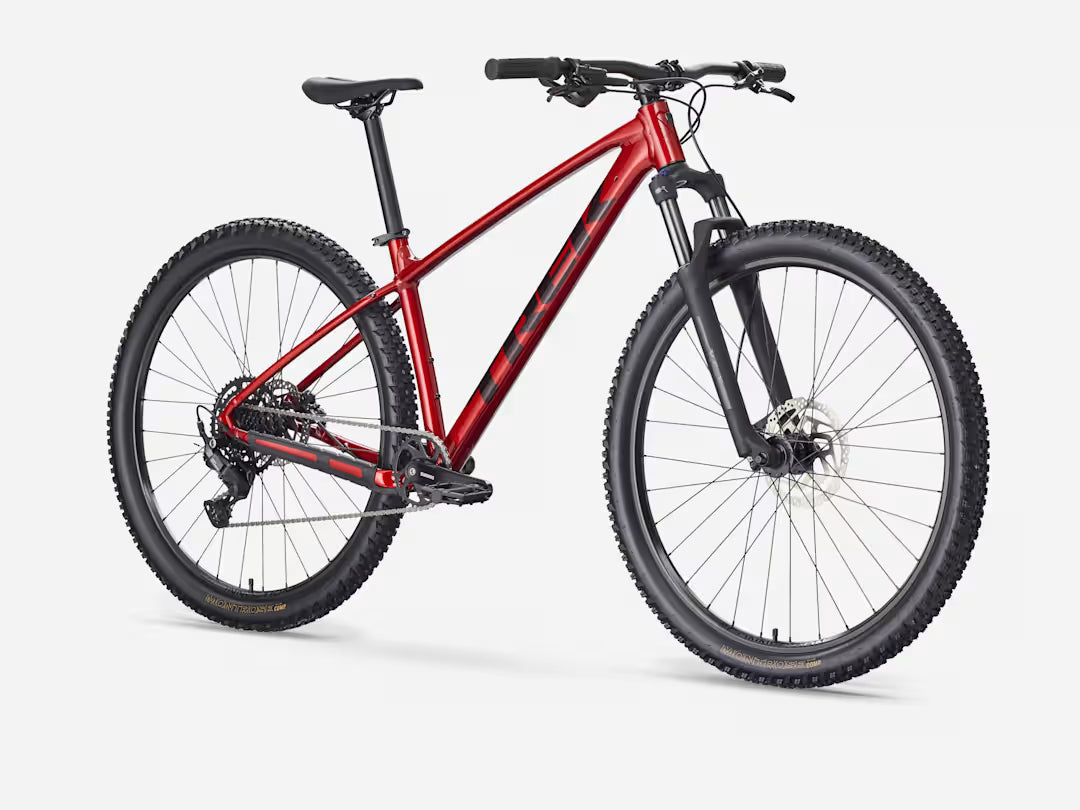

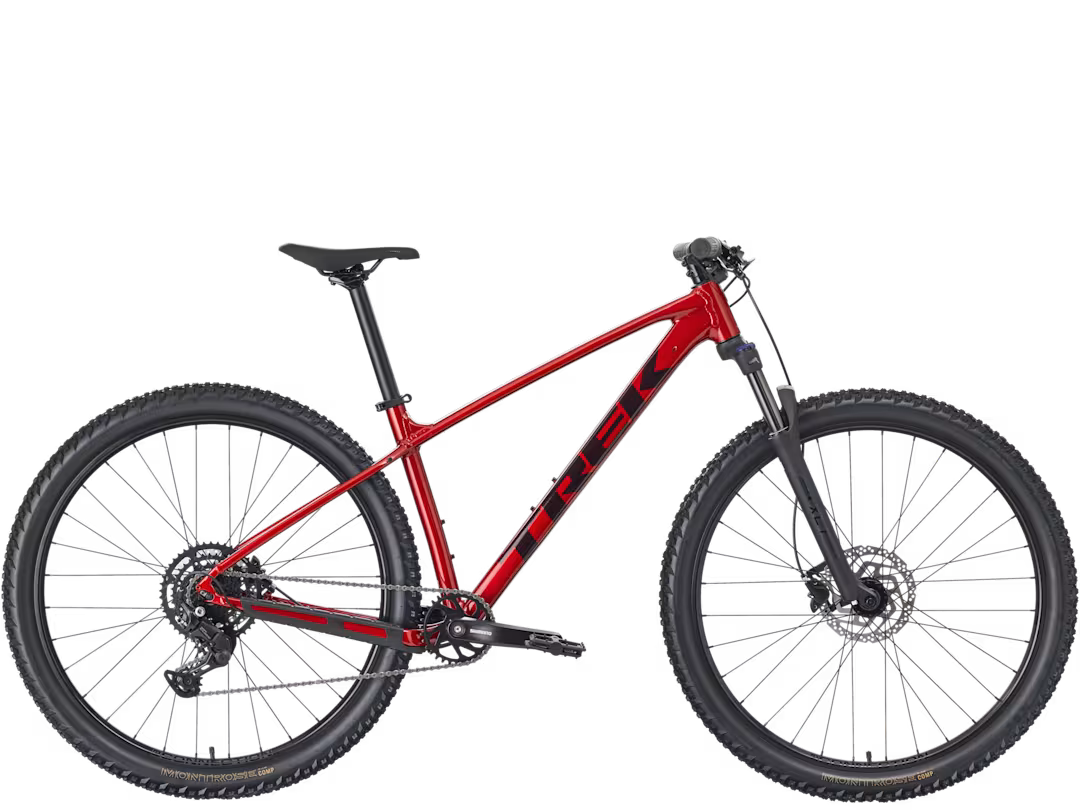

Trek Marlin 5 Gen 3 - Fury Red

Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. It features a trail-savvy frame with a suspension fork, 9-speed Shimano CUES shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.

Specifications

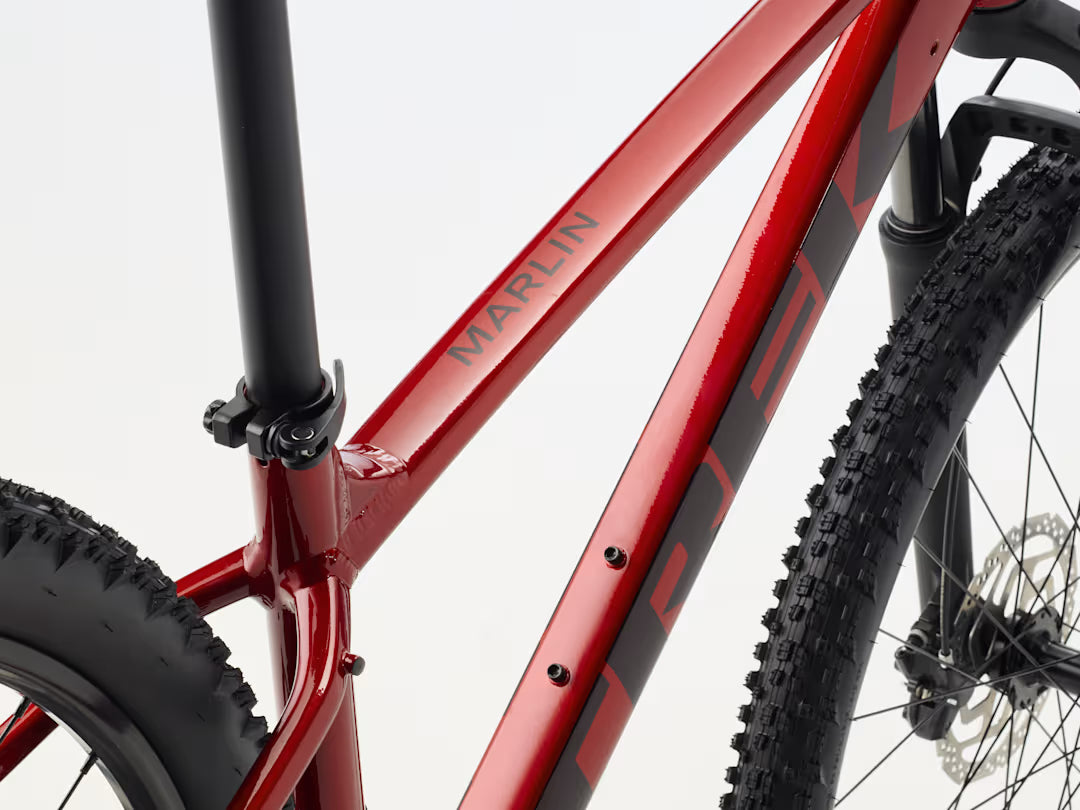

• Frame: Alpha Silver Aluminium, internal derailleur & dropper post routing, rack & kickstand mount, 135x5mm ThruSkew (XS: curved top tube)
• Fork: SR Suntour XCT 30, coil spring, preload, hydraulic lockout — XS: 80mm travel (27.5"), S: 100mm (27.5"), M–XXL: 100mm (29")
• Wheel Size: XS & S: 27.5" / M–XXL: 29"
• Tyres: Bontrager Montrose Comp, 30tpi — XS/S: 27.5x2.40", M–XXL: 29x2.40"
• Rims: Bontrager Connection, double-wall, 32-hole, 20mm width
• Hubs: Formula DC-20 front / Formula DC-22 rear, Shimano 8/9/10 freehub
• Shifter: Shimano U4000, 9-speed

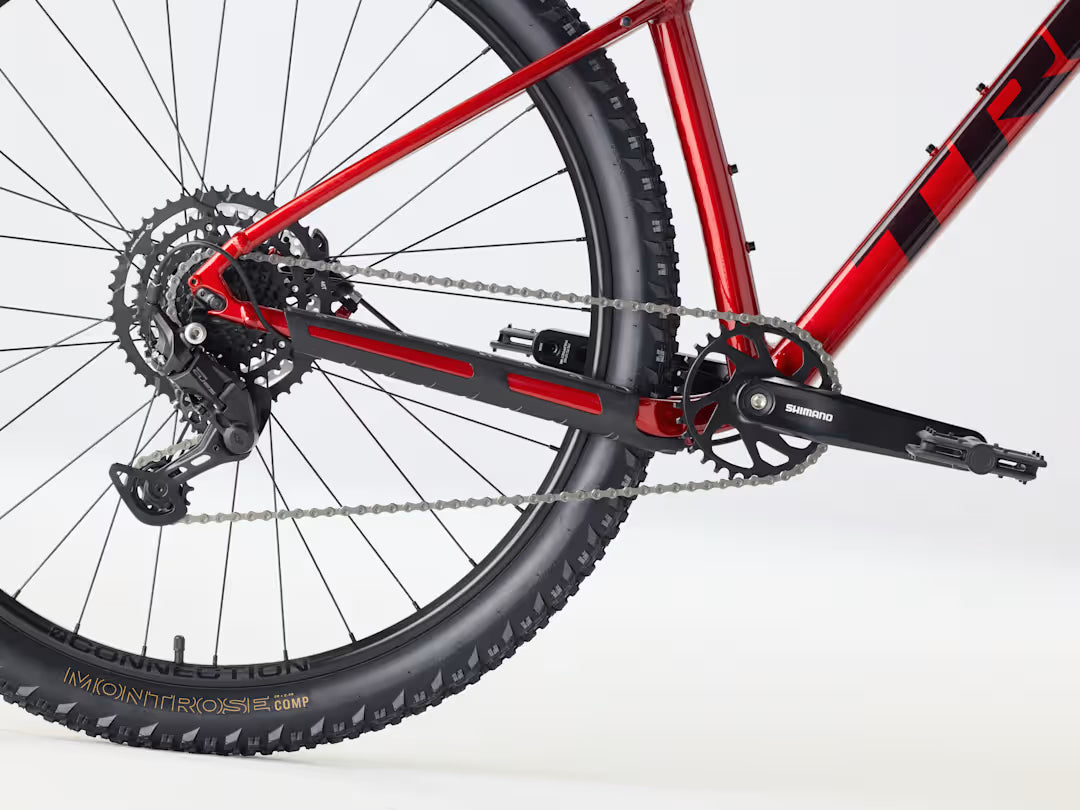

• Rear Derailleur: Shimano CUES U4000
• Crank: Shimano CUES U4001, 32T — XS–ML: 170mm, L–XXL: 175mm
• Cassette: Shimano Linkglide LG300, 11-46t, 9-speed
• Chain: Shimano LG500
• Bottom Bracket: Shimano, 73mm threaded cartridge
• Pedals: VP-536 nylon platform
• Brakes: Shimano MT200 hydraulic disc
• Rotors: Shimano RT26 6-bolt — 160mm (XS/S), 180mm (M–XXL)

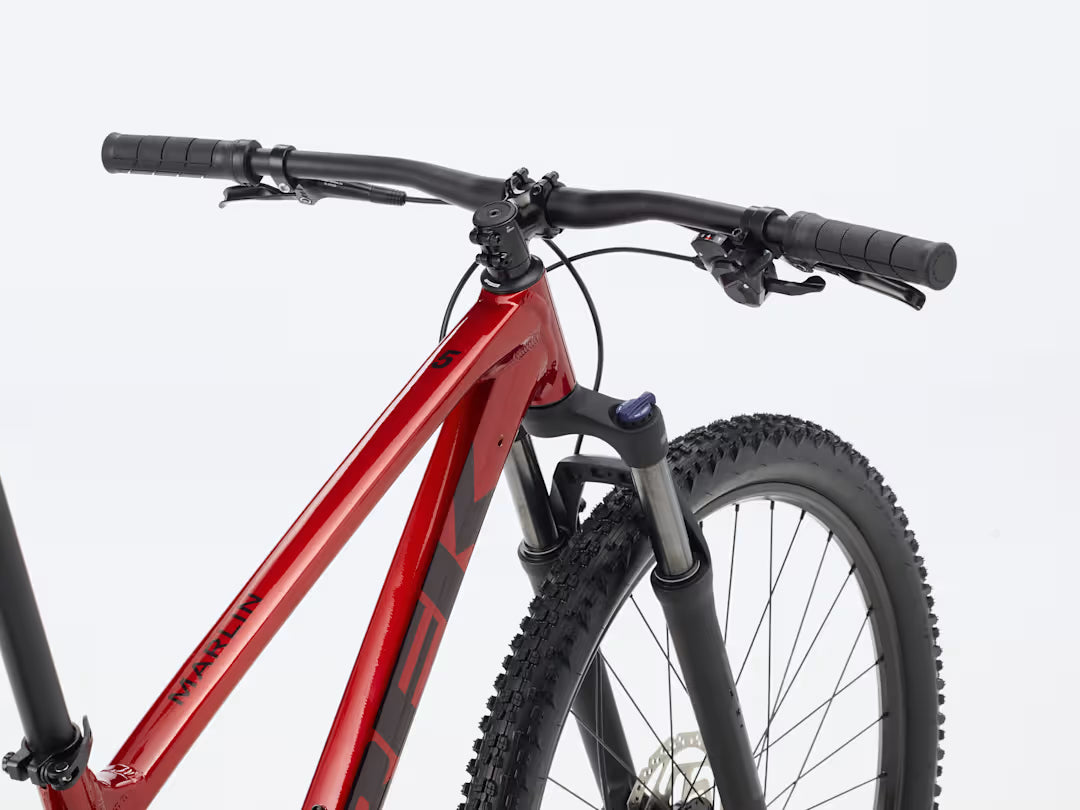

• Handlebar: Bontrager alloy, 31.8mm — XS: 690mm/5mm rise, S: 720mm/15mm rise, M–XXL: 750mm/15mm rise
• Stem: Bontrager Comp, 31.8mm, 7° — XS/S: 35mm, M/ML/L: 50mm, XL: 60mm, XXL: 70mm
• Seatpost: Bontrager alloy, 31.6mm, 12mm offset — XS–M: 330mm, ML–XXL: 400mm
• Saddle: Bontrager Verse Short, stainless steel rails
• Headset: Semi-integrated, 1-1/8"
• Weight: 15.10 kg / 33.29 lb (Size M)
