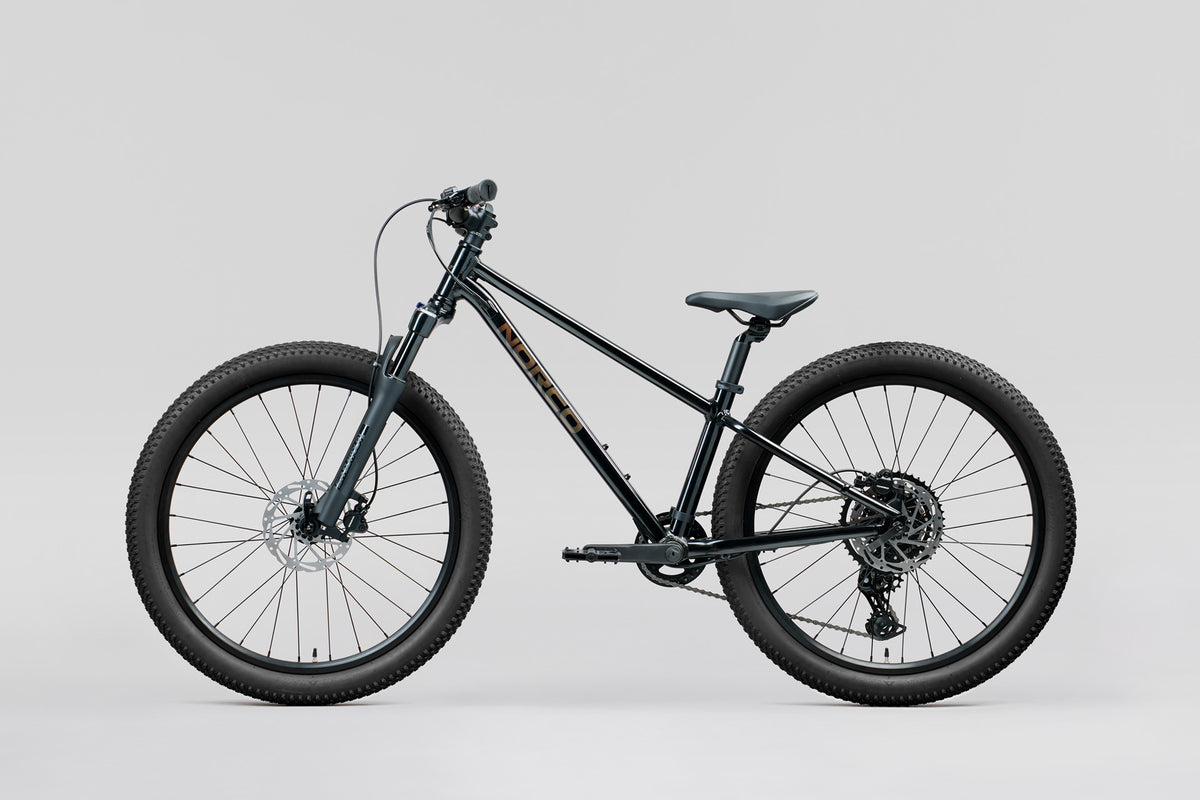

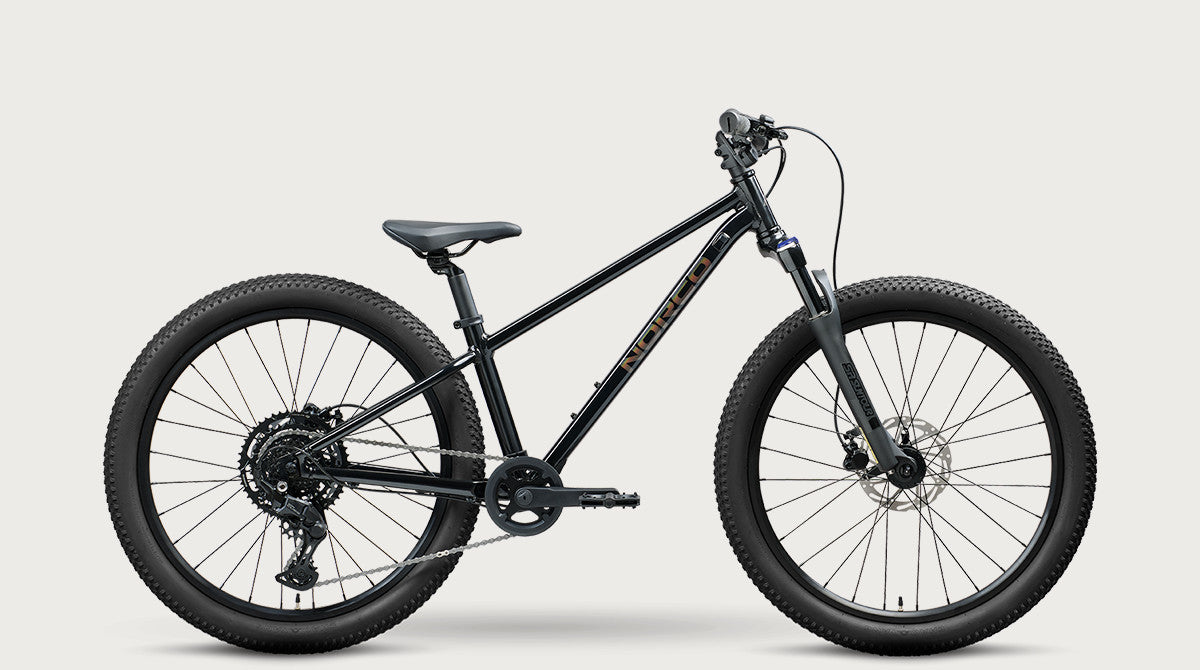

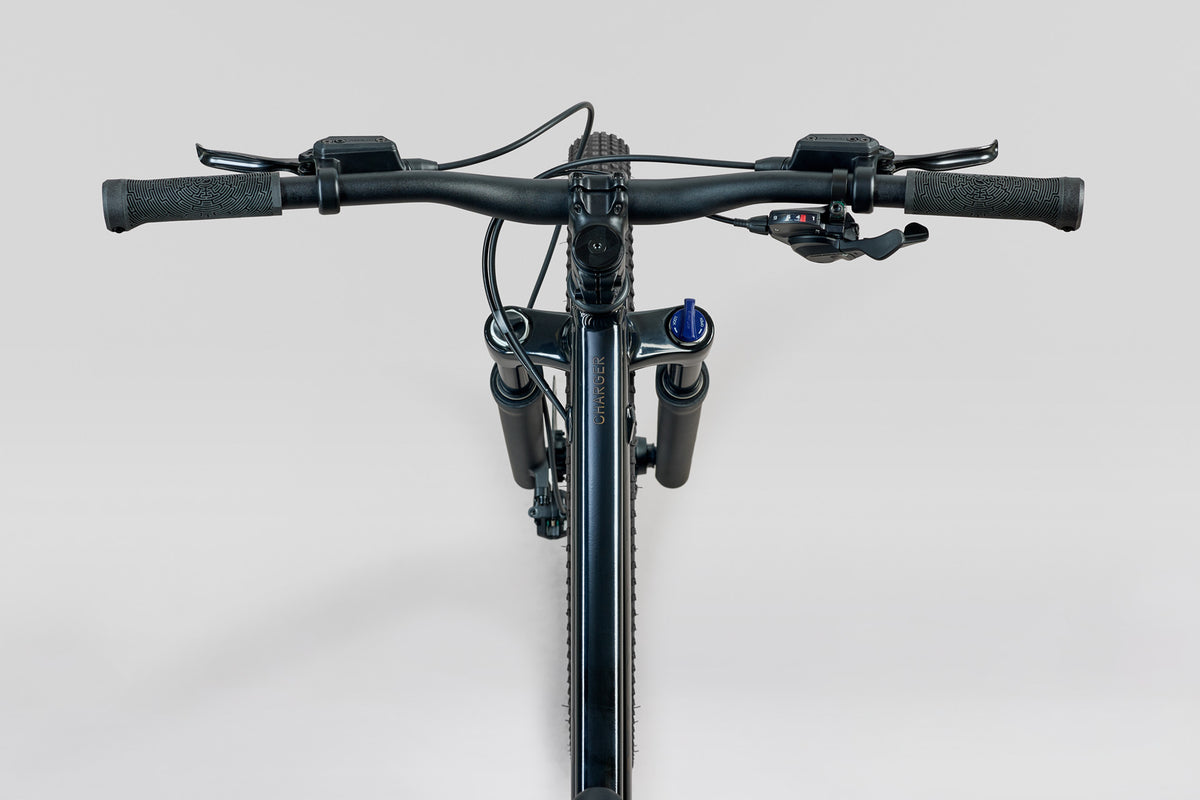

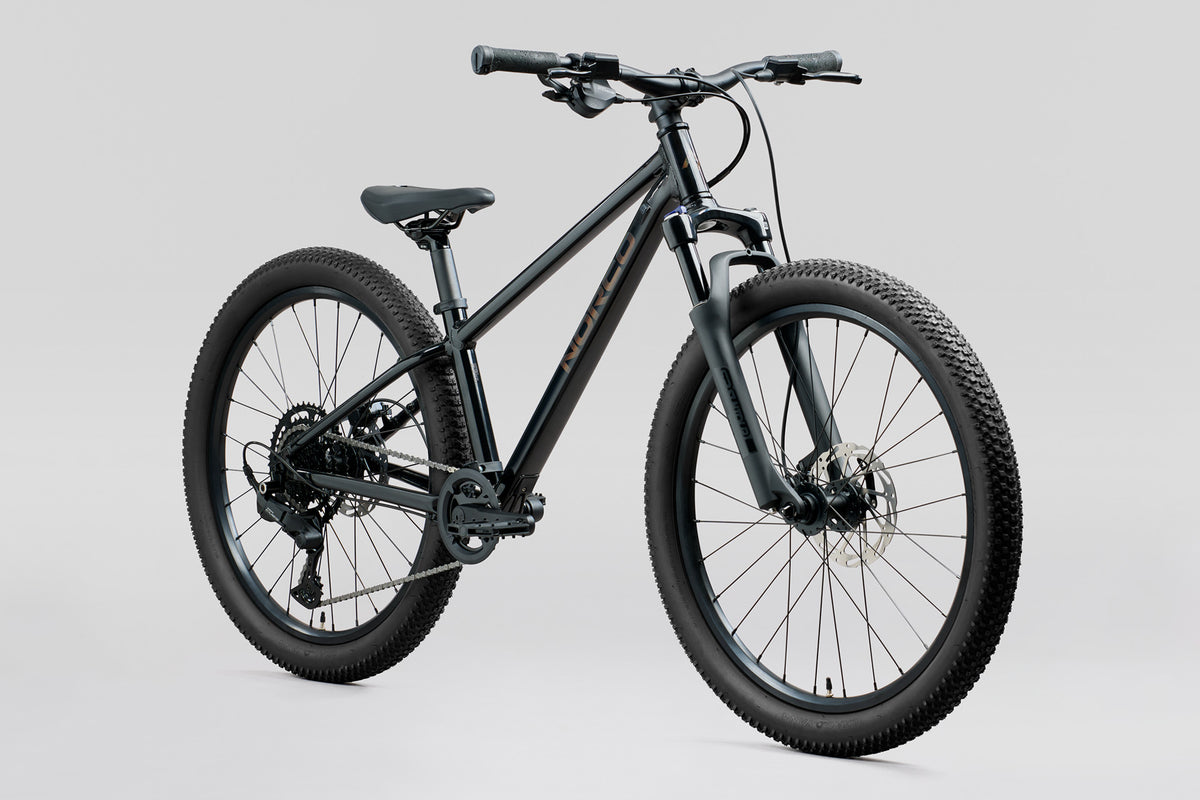

Norco Charger Youth 24

The Norco Charger Youth 24 is a lightweight and durable kids hardtail mountain bike built for local trails, school commutes, and family adventures. Featuring a 24" aluminium frame, SR Suntour air suspension fork with 70mm travel, Shimano CUES 9-speed gearing, and Tektro hydraulic disc brakes, it gives young riders confidence as they explore. Kid-friendly geometry and youth-sized components keep the ride comfortable and controlled. Available at Wheel House Bikes, Kilmore, Victoria.

Specifications

Frame & Fork

• Frame: Aluminium, 9x135 QR, 24"
• Fork: SR Suntour XCT Air NLO, 70mm, 9x110 QR

Drivetrain

• Rear Shifter: Shimano Cues SL-U40000-9R
• Rear Derailleur: Shimano Cues RD-U4000
• Crankset: Alloy 3-piece, 140mm, 28T narrow-wide
• Bottom Bracket: Sealed bearing, 68mm BSA
• Cassette: Shimano Cues CS-LG300-9, 11-46T, 9-speed
• Chain: KMC XGlide

Brakes

• Front Brake: Tektro HD-M3121
• Front Brake Rotor: Tektro 160mm rotor, 6-bolt
• Rear Brake: Tektro HD-M3121
• Rear Brake Rotor: Tektro 160mm rotor, 6-bolt
• Brake Levers: Tektro HD0M3121, hydraulic 2-finger junior levers

Components

• Handlebar: Alloy junior riser, 640mm, 30mm rise
• Stem: Alloy, 31.8mm clamp, 45mm length
• Seatpost: Norco alloy, 31.6mm, 250mm length
• Headset: External cup ball bearing, 1-1/8"
• Saddle: Norco Jr XC, steel rail
• Grips: Norco Youth, 116mm length
• Pedals: Junior MTB flat, 9/16"
• Seatpost Clamp: Norco alloy bolted, 34.9mm ID

Wheels

• Front Hub: WZ MT02-1, 9x110mm QR, 28H, 6-bolt
• Rear Hub: Formula DC-1425, 10x135mm QR, HG, 28H, 6-bolt
• Rims: Aluminium double-wall, 28H, 24" MTB
• Front Tyre: CY Trail, 24x2.25", wire
• Rear Tyre: CY Trail, 24x2.25", wire
• Spokes/Nipples: Stainless steel with brass nipples, black
