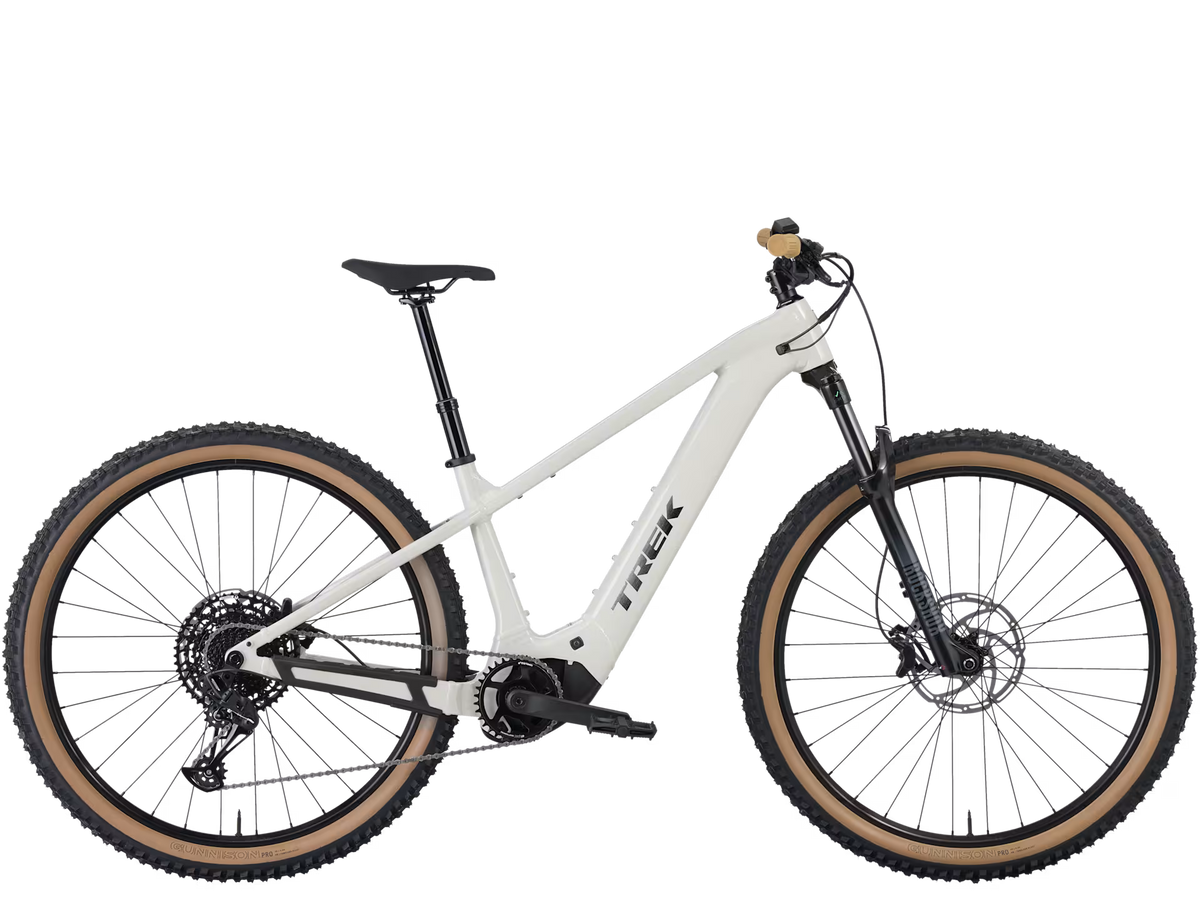

Trek Marlin+ 8 Gen 2

Marlin+ 8 is an electric mountain bike that’s ready to level up your trail rides. Its Bosch Performance Line motor delivers powerful support for steep climbs and longer adventures, while a 120mm RockShox Recon Silver RL fork keeps handling smooth through rough terrain. Upgraded components like wide tubeless-ready wheels and tyres, a SRAM Eagle 12-speed drivetrain, and powerful 4-piston hydraulic disc brakes make it a capable trail bike that’s ready to roam.

Specifications

Frame & Fork

• Frame: Alpha NEXT Gold aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mounts, UDH, Boost148, 12mm thru axle
• Fork (S): RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
• Fork (M, L, XL): RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel

E-System

• Battery: Bosch PowerTube, 540Wh
• Charger: Bosch standard 2A, 230V, smart system
• Computer: Bosch Purion 200

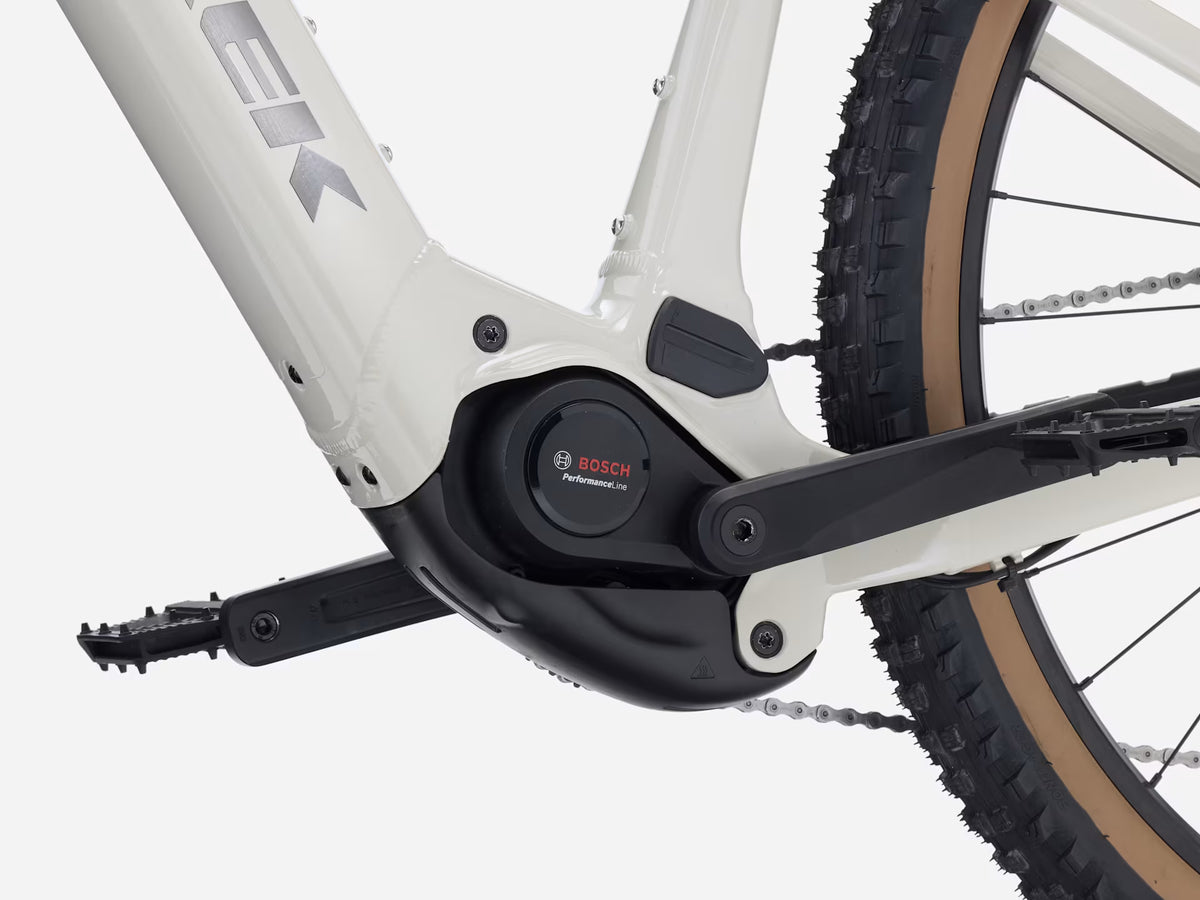

• Motor: Bosch Performance Line, 250W, 75Nm
• Maximum Assist Speed: 25km/h

Drivetrain

• Shifter: SRAM S200 Eagle, 12-speed
• Rear Derailleur: SRAM S100 Eagle, Half-Mount
• Crank: FSA Bosch CK-220, 36T ring, 165mm length
• Chainring: E*thirteen, 34T, steel
• Cassette: SRAM Eagle PG-1210, 10-50, 12-speed
• Chain: SRAM S100 Eagle
• Pedals: Nylon platform
• Chainring Size Limits: 1x: maximum 36T, minimum 32T

Brakes

• Brakes (S, M, L, XL): Tektro HD-M5140, 4-piston hydraulic disc
• Brake Rotor: Tektro, CentreLock, 203mm
• Rotor Size Limits: Frame: maximum 203mm, minimum 180mm. Fork: see fork manufacturer

Components

• Saddle: Trek Verse Short Trail
• Seatpost (M): TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
• Seatpost (L, XL): TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
• Handlebar (S): Bontrager alloy, 31.8mm, 15mm rise, 720mm width
• Handlebar (M, L, XL): Bontrager Comp alloy, 31.8mm, 40mm rise, 780mm width
• Grips: Trek Line Comp, nylon lock-on
• Stem: Bontrager Comp, 31.8mm, Blendr compatible, 7-degree, 50mm length
• Headset: Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom

Wheels

• Front Hub: Shimano TC500 alloy, CentreLock, 110x15mm thru axle
• Rear Hub: Shimano TC500 alloy, CentreLock, 148x12mm thru axle
• Rear Axle: Bontrager Switch thru axle
• Rims: Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
• Spokes: 14g stainless steel, black
• Tyres (S): Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"
• Tyres (M, L, XL): Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
• Rim Strip: Bontrager TLR
• Maximum Tyre Size: Frame: 29x2.60" (S: 27.6x2.60"). Fork: see manufacturer

Weight

• Weight (M): 21.90kg / 48.29lbs
